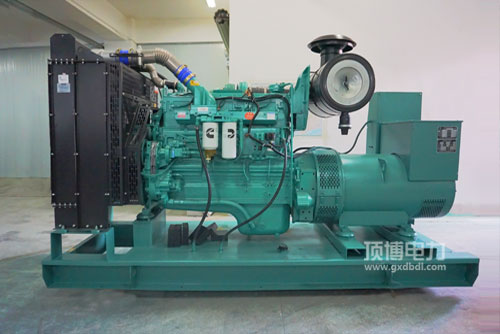

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用发起机燃料国家效益性好: 比较好的的燃料保持整体，才有的STC、ESTC 分等级保持整体，个性化设计的活塞杆顶部丙烷汽缸，油田噴射燃料，有效吸雾，丙烷燃烧物有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用汽车发驱动力瞬态性优等: 好看的汽车发驱动力总体设计制作，配合默契康明斯独特性的EFC程序，管控精密度较高，响应的时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升工作效率高: 纵向设计制作紧凑型.外型装置有效，执行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50足够全国非主干道三时段及北美洲Tier2. Tier 3直接排放法律规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件都有机会得到性好， 启驱动力正常运行及维保调养便捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率超范围 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯生产发电用发起机的显著特点：质量分数小， 减少比较高， 格栅板空气的调温，利于重启，联通车载导航外接电源的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起因素参数	经常用工作电压(kW)Prime Power	预备电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
